TLH-IMU-350M-03J-TLH-IMU Inertial Measurement Unit-I-NAV - lead the intelligent world with the ultimate high-precision positioning

TLH-IMU-350M-03J TLH-IMU Inertial Measurement Unit The TLH-IMU series inertial measurement unit is an inertial measurement device based on domestically produced high-precision fiber optic gyroscopes and quartz flexible accelerometers. It can measure and output real-time angular velocity and linear acceleration signals in the three axes of the carrier, as well as three-dimensional attitude information. This series of products has the characteristics of high precision, small size, light weight, and low power consumption. It can be widely used in application scenarios such as drones, aerospace, aviation, etc. View Performance Parameters

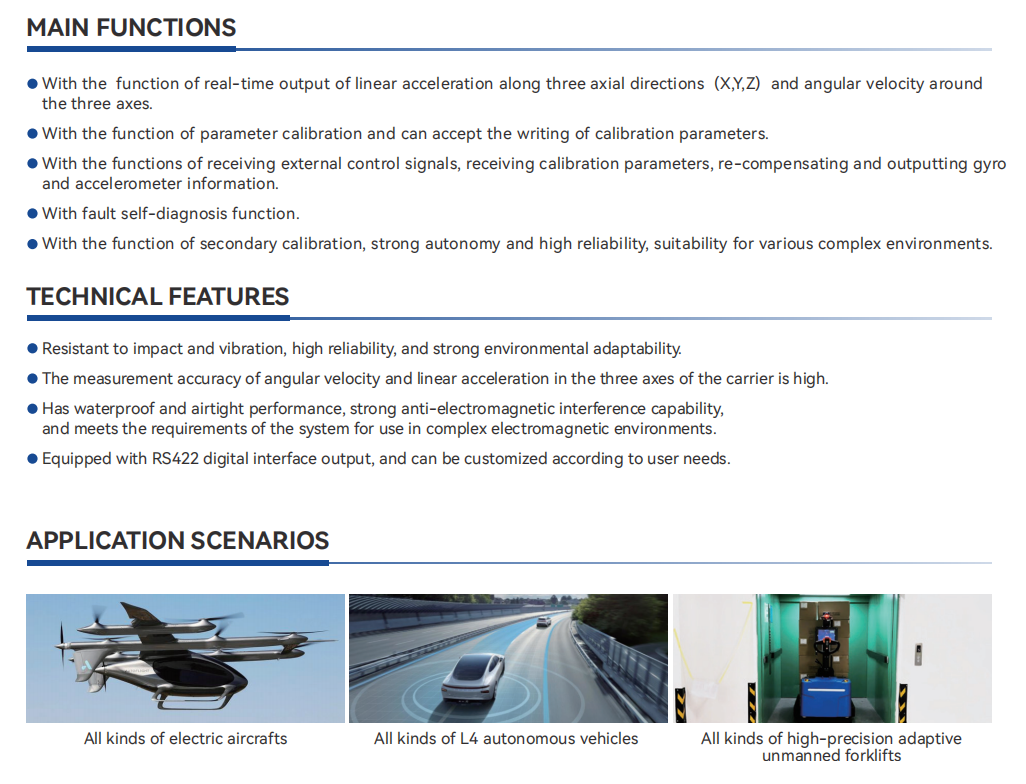

Main Functions

With the function of secondary calibration, strong autonomy and high reliability, suitability for various complex environments.
Main Functions

With fault self-diagnosis function.
Main Functions

With the functions of receiving external control signals, receiving calibration parameters, re-compensating and outputting gyro and accelerometer information.
Main Functions

With the function of parameter calibration and can accept the writing of calibration parameters.
Main Functions

With the function of real-time output of linear acceleration along three axial directions (X,Y,Z) and angular velocity around the three axes.

Technical features High output frequency, stable and reliable data High circuit integration, navigation solution, plus table IF conversion and other circuit integration design. Integrated design, compact structure, built-in GNSS module and height meter Strong autonomy, autonomous navigation and positioning based on other sensors such as on-board odometers Interface rich, adaptable, with dual CAN, RS422, RS232, synchronous second punch and other types of interface, can be customized according to user needs

Performance Parameters
